Full set of IR diodes operating in a wide temperature range



Keys for understanding device codes:

FS - front surface illuminated PDs

TEC -Thermoelectrically cooled devices

PR - devices equipped with parabolic reflector

MiL - microimmersion lens device

SR/SU -  backside illuminated diodes (episide down bonded devices) with Si lens (D=3.5 mm) in a cylindrical case

BS - backside illuminated diodes (episide down bonded devices) with Si submount and TO header

XX-YY  - 2 color PD

PDMXXTEC - photodiode modules with immersion lens, amplifier, TEC and temperature controller.



* - recently updated



Wavelength

Ambient temperature

optically immersed diodes and matrixes

Optically immersed and TEC equipped diodes

Bare chip diodes

λ, μm




LEDs PDs

PDs

with amplifier

2-color PDs* Matrix PDs* LEDs PDs PD modules with amplifier and temperature controller LEDs PDs

1.9

LED19Sr(Su)

PD19



LED19TO8TEC

PD19





2.2

LED21Sr(Su)

PD21



    PD21BS 8×8(in Russian)

LED21TO8TEC

PD21





2.7

  PD27FS

<==

PDM27TEC*

<==

2.9 LED29BS*

3.0

LED30Sr, Su, TEC

PD27

PD29



<==

<==







3.3

  PD33FS         PD33FS     PD33FS

3.4

LED34Sr(Su)

LED34BS

PD34



PDMxx* PD33-42*

PD34NB 3×3*

PD34NB 2×2*

PD34BS 8×8 (in Russian)

LED34BS

PD34

PDM34TEC*

LED34BS

PD33fsi

3.6

LED36







3.8

LED38

LED38BS*

PD38

PDMxx*

<==

PD38

PDM38TEC*

LED38TO18



4.1

  PD41FS         PD41FS     PD41FS
4.2

LED42Sr/Su

LED42BS*

PD42Sr/Su

PD42BS*

PDMxx* PD33-42*

PD42WB 3x3*

PD42WB 2x2*

LED42TO8TEC

PD42

PDM42TEC*

LED42TO18

LED42BS*

PD42fsi

PD42BS*

4.7

LED47*

LED47BS*

PD47*

PDMxx*

LED47TO8TEC

  PDM47TEC*





5.2   PD52FS         PD52FS     PD52FS

5.3

LED53Sr(Su)



LED53TO8TEC









5.5

LED55*

PD55*

PDMxx*

LED55TO8TEC*



PDM55TEC*





7.0

OPLED70


 * data on PD34 performance at temperatures below 200 K

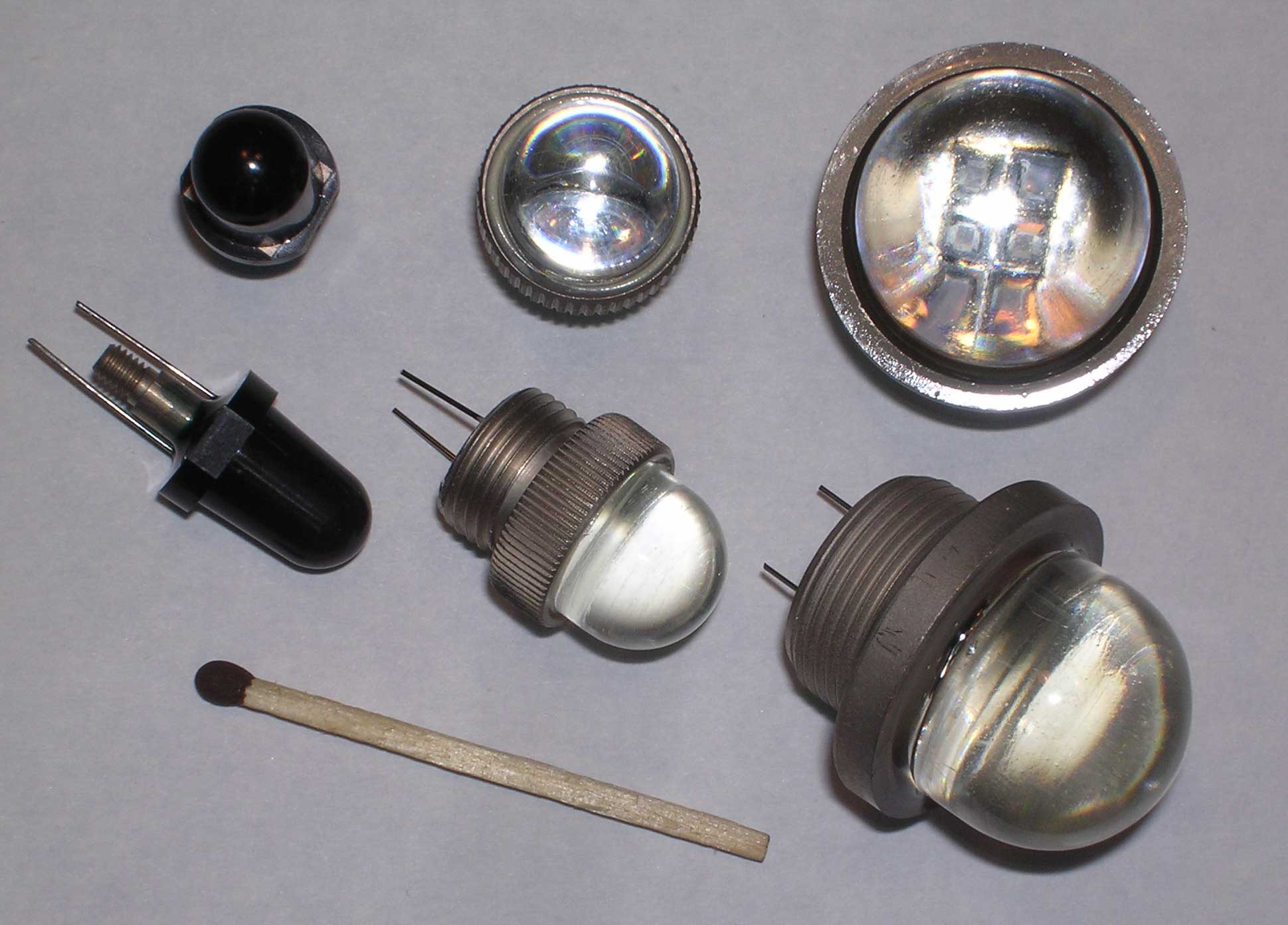

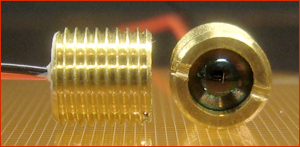

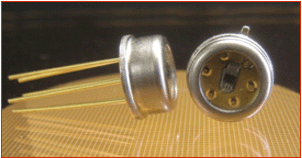

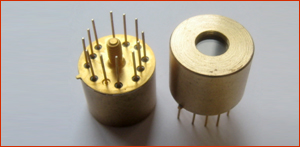

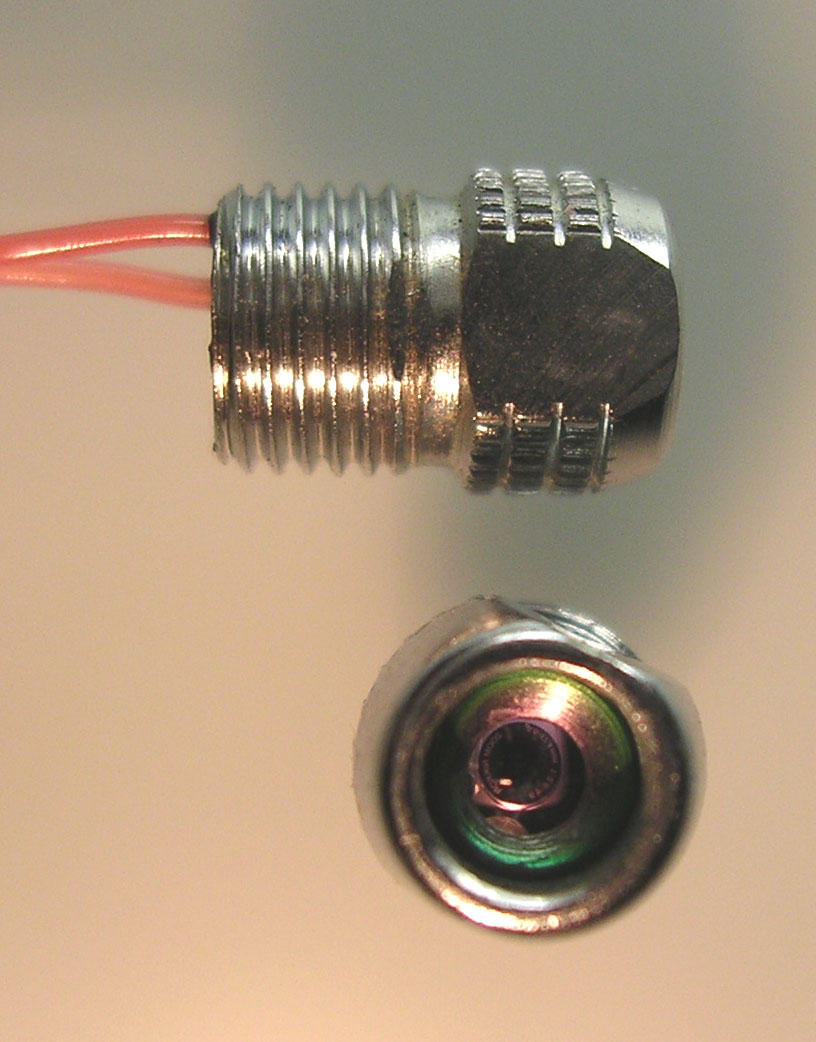

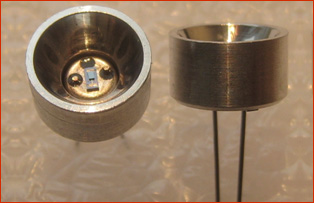

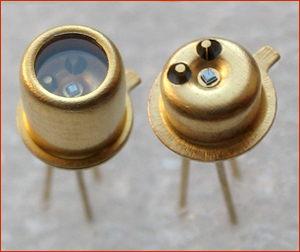

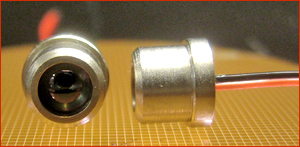

      Cases: Sc, Sr, Su, TO8TEC, Si submount, TO-18, TO-18 with cap and window, TO-18 with reflector, TO-18 with microlens, case for PD with built-in amplifier, TO-39

All LEDs .pdf (600k)

All photodiodes .pdf *

 IR images of diode chips


Single channel gas sensor


Driver for LEDs (under development)

PD amplifier



Recommended amplifier schematic


 Useful notes for first time User of IR LEDs.

        Additional information on LEDs and PDs can be derived from our publications.

Single mode tunable lasers 3.15-3.25  um (77 K).

High power lasers 3.3 um (77 K).



Near-IR and visible LEDs for the 655-890 nm range.

High power 635nm, 660 nm, 685 nm, 730 nm LEDs with 5-10 deg. beam.

High power 870 nm LEDs with 3 deg. beam.

IRS-1,  IRS-2 , IRS-3, IRS-4, IRS-5, IRS-7, IRS-8 (in Russian and in English).



Other related products

Electrometer (in Russian)

Si detectors (in Russian)





How to get a device(s)?.
