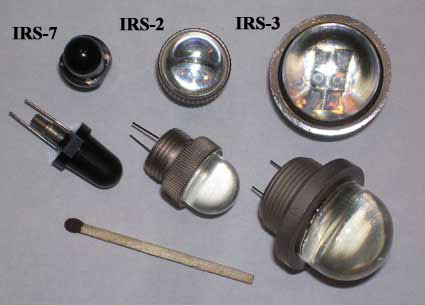

Type IRS-2 -655-10° IRS -2 -685-10° IRS -2 -800-10° IRS -2 -870-10° IRS -3-655-40° IRS -3-685-40° IRS -3-800-40° IRS -3-870-40° IRS-7-870-4Ì
Wavelength, nm 650-660 670-690 790-810 850-890 650-670 675-695 790-810 850-890 850-890
FWHM, nm 25 25 40 40 30 40 50 50 30
Angle FWHM, deg 10° 10 10 10 40 40 40 40 4
Temperature conditions, 0C -60 - +75 -60 - +75 -60 - +75 -60 - +75 -60 - +75 -60 - +75 -60 - +75 -60 - +75 -60 - +75
CW maximal current, mA 300 400 2 500 2 500 2 200 300 3 400 3 400 3 300
CW voltage at 200 mA, V 2.4-2.6 2.4-2.6 2.1-2.3 2-2.2 13-14 13-14 11.5-12 10-10.5 5 2.2-2.5
Dissipation power, mW 750 1000 1200 1500 3000 3000 4000 4000 700
Power at CW maximal current, mW     40-70 50-70 80-100 180-240 250-350 300-350 33-45
Pulse maximal current, mA 5000 5000 8000 8000 2500 2500 2500 2500 1500
Pulse rise/decay time, ns 30/40 30/40 30/40 30/40 80/100 80/100 80/100 80/100 30
Thermal resistance, 0C/W 30 30 30 30 20 20 20 20 50

1- with radiator
2- Is reduced linearly at temperature above 55°Ñ with factor 5 mA/ °Ñ
3- Is reduced linearly at temperature above 55°Ñ with factor 10 mÀ/°Ñ
4- Is reduced linearly at temperature above 55°Ñ with factor 6 mÀ/°Ñ
5- at 350 mA
6- t =10 m s, Q> 100
