FUNCTION - continuous monitoring of pre-explosive
concentrations of hydrocarbon gases (HCG) on processing plants, recording daily,
weekly and monthly emissions on an integrated control station and right in
operator's room.
PRINCIPLE OF OPERATION – measurement of absorption of
infrared radiation in HCG at two wave lengths in the path of its distribution
from the emitter to the receiver.
Specifications
HCG concentration measurement range
0.001 – 5 LEL´m
Measurement error
±
5%
Ambient air temperature
from -40˚Ñ
to +70˚Ñ
Measurement path length
20 – 100 m
Device response time, max
8 sec
Output signal
4 -20 mA, interface RS232, RS485
Power supply
220V, 50 Hz; 8 VA(max)
Class of protection: EM and DM
MCD è
PSU
IP 54
IP 44
The device tolerates relative air humidity
of up to 95 ±3%
at +35˚Ñ.

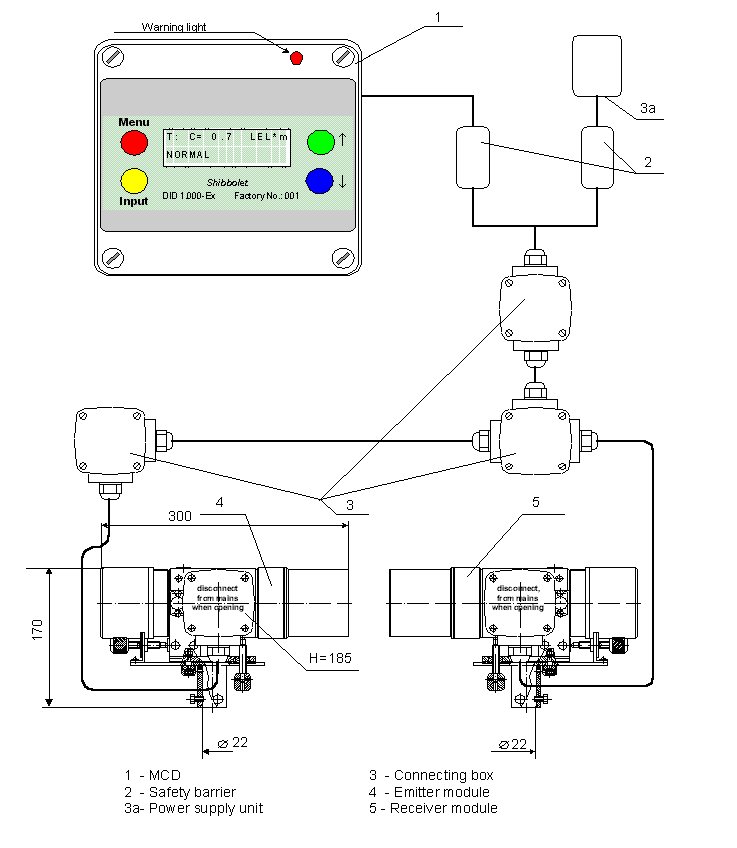

Complete set of the device includes:
emitting module (EM), detecting module (DM), monitoring and calculating
device (MCD), energy barriers of spark protection (EBS), power supply unit (PSU)
The device provides real time indication
of the current HCG concentration on the display as well as audible and
visual warning on exceeding the threshold HCG concentration, and maintains
an archive of data records by number of gas leaks per day (32 days max), per
month (3 months max), maximum HCG concentration in each gas leak and its
duration, power outage, HCG concentration graph for the last 7 days in a
form of a bar chart.
Explosion protection - 1ÅõibIIAÒ4,
Certificate ÖÑ ÂÝ ÈÃÄ ¹ 2001.Ñ292.
RF GOSSTANDART Certificate approving the
type of the measuring tool: RU.C.31.004.A.¹11428.
